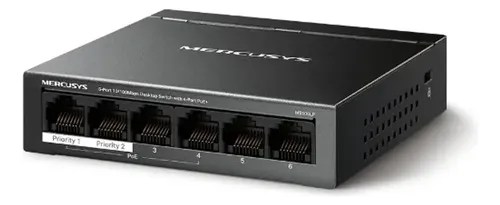

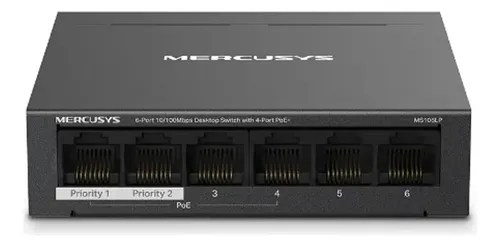

Mercusys MS106LP Switch, 6 10/100 Mbps Ports with 4 High-Power 40W PoE Ports, Range up to 250M, Metal Housing
Overview
6-Port 10/100 Mbps Desktop Switch with 4 PoE+ Ports
6 ports: 6 10/100 Mbps RJ45 ports with 4 PoE+ ports
Two cables in one: with four PoE+ ports, transfers data and power over a single cable
High-power PoE+: supports up to 30 W of PoE power for each PoE port and 40 W for all PoE ports*
2 uplink ports: MS106LP provides 2 uplink ports when isolation mode is activated. One connects to the Internet and the other to the NVR.
Long range up to 250 m: extends PoE transmission distance to 250 m using extend mode*
Isolation mode: One click to separate traffic on specific ports for stability and security
Powered device compatibility: works with IEEE 802.3af/at-compliant PDs
Durable metal housing: allows efficient heat dissipation and a long network service life
Plug and Play: easy to use, saves time and effort
Automatic PoE recovery: automatically restarts crashed or unresponsive PoE-powered devices
6-Port 10/100 Mbps Desktop Switch with 4 PoE+ Ports
MS106LP
Long range up to 250 m. Durable metal housing. 40 W PoE power
Durable and quiet
The durable metal housing of the MS106LP provides efficient heat dissipation, excellent signal interference prevention, equipment stability and a long network service life.
Durable metal housing.
Quiet operation
Wall mount
SPECIFICATIONS
Dimensions (W x D x H)
99.8*98*25mm
PoE Ports
RJ45
Standard: Supports 802.3 af/at Powered Devices
PoE ports: Port 1- Port 4
PoE power: 40 W
Interfaces
6 10/100 Mbps ports, auto-negotiation, auto MDI/MDIX
External power supply
External power adapter (Output: 53,5 V/0,81 A)
Standards and protocols
IEEE 802.3x flow control
Data transfer rates
10/100 Mbps half-duplex
20/200 Mbps full-duplex
Jumbo Frame
2 KB
Mac Address Table
2K
Max Power Consumption
1,87 W (220 V/50 Hz, no PD connected)
44,8 W (220 V/50 Hz, with 40 W PD connected)
Max Heat Dissipation
6,34 BTH/h (no PD connected)
152,32 BTH/h (with 40 W PD connected)
Others Package contents
6-Port 10/100 Mbps Desktop Switch with 4 PoE+ Ports (MS106LP)
Power adapter
Quick Installation Guide
